Brass / Gold Plated Smb Straight Connector / Rf Coax Pcb Mount Connector

  • Brass / Gold Plated Smb Straight Connector / Rf Coax Pcb Mount Connector
  • Brass / Gold Plated Smb Straight Connector / Rf Coax Pcb Mount Connector
  • Brass / Gold Plated Smb Straight Connector / Rf Coax Pcb Mount Connector
  • Brass / Gold Plated Smb Straight Connector / Rf Coax Pcb Mount Connector

Brass / Gold Plated Smb Straight Connector / Rf Coax Pcb Mount Connector

    Unit Price: 0.69~1.69 USD
    Min. Order: 300 PCS
    Packaging: each piece in a PVC bag, 100pcs in an inner-box, 1000pcs in a carton
    Productivity: 80Kpcs per week
    Brand: Honor
    Transportation: Express,Air
    Place of Origin: Mainland China
    Supply Ability: 10k +pcs+ per week
    Certificate: ISO9001
    HS Code: 85369090

Product Description

<div class="details_wrap">

SMB female connector straight smb pcb mount connectors rf coax connector


Smbdata
Products Specification:

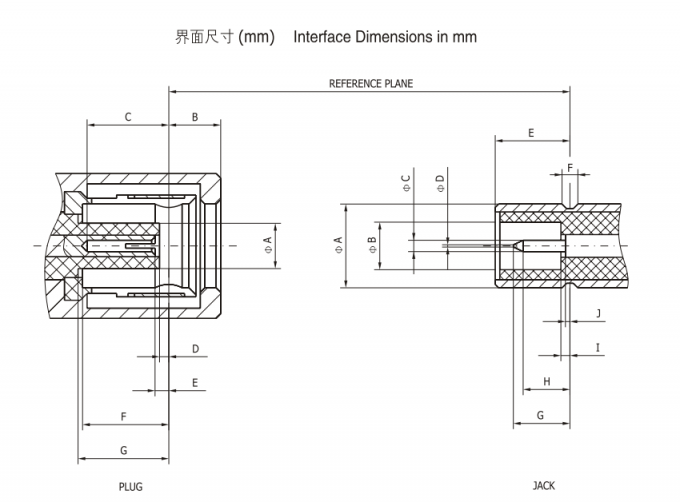

Series SMB are snap-on connector design. With the excellent performances of small size, high packing density, fast and reliable connection, excellent electrical and mechanical properties, they are always suitable to connect coaxial cables in RF circuits of electronic equipment. The applicable offer broadband capability through 4GHz. Their interface dimensions and technical characteristics are MIL-C-39012, IEC60169-10 BS9210 N 0007, NFC93650 and CECC22130 compliant.Characteristic impedance 50 Ohm, 75 Ohm.




Part Number

Description

Gender

Maximum Frequency

Polarity

Orientation

Data Sheet

SMB-KHD

SMB Straight PLUG 50 Ohm

PLUG(female)

4GHz

Standard

Straight

pcb mount

SMB-KHDC

SMB Straight PLUG 50 Ohm

PLUG(female)

4GHz

Standard

Straight

edge mount



SMB Cable Mount Connectors

Product range:

SMB straight bulkhead jacks, SMB right angle bulkhead jacks,SMB Flange Mount Connectors


SMB straight 2-hole/4-hole flange mount jacks, MB PCB Mount Connectors


XAHonor can produce many kinds of RF and coaxial Cable Mount SMB Connectors, including SMB semi-rigid and conformable cable connectors, SMB flexible cable connectors, RP SMB cables, 75 ohm mini SMB cable connectors,SMB pigtail cables. XAHonor Cable Mount SMB Connectors frequency range from DC to 4GHz provides low cost connector combined with high quality. Cable Mount SMA Connectors are designed to terminate to a wide variety of 0.086 semi-rigid,0.141 semi-rigid, flexible low-loss (LMR) type cables, RG-type, such as RG174, RG188, RG316 and etc.


SMB Bulkhead Mount Connectors

SMB bulkhead mount connectors is a kind of SMB panel connectors. XAHonor SMB bulkhead connectors includes SMB female bulkhead connectors, SMB male bulkhead connectors, 75 ohm mini SMB connectors bulkhead, which can designed to terminate to PCB mount as well as cables mount.


Brass / Gold Plated Smb Straight Connector / Rf Coax Pcb Mount Connector 0


Brass / Gold Plated Smb Straight Connector / Rf Coax Pcb Mount Connector 1Brass / Gold Plated Smb Straight Connector / Rf Coax Pcb Mount Connector 2Brass / Gold Plated Smb Straight Connector / Rf Coax Pcb Mount Connector 3Brass / Gold Plated Smb Straight Connector / Rf Coax Pcb Mount Connector 4


Brass / Gold Plated Smb Straight Connector / Rf Coax Pcb Mount Connector 5


Q: What is the Minimum Order Quantity(MOQ)?

A: Normally, MOQ is 300pcs, but special requirements can be accepted.


Q: How much do I need to pay for your OEM service?

A: No need to pay extra cost for our OEM service if order quantity over 300 pcs. The OEM cost includes in the unit price.


Q: What is the lead time?(How long do you need me to prepare my goods?)

A: 7-10 days for sample orders, 15-18 days for mass production orders (based on different quantities, OEM , etc.)


Q: How will you deliver goods to me?

A: We ship by air and international express. In the mean time, we cooperate with international expresses such as DHL, UPS, FedEx, TNT to enable our customers to get their goods rapidly.


Q: How long do I need to wait before my goods arrive?

A: 5-7 days for air transportation, 4-6 days for international express.


Q: How is your product quality?

A: Our raw materials are purchased from qualified suppliers. And we have a strong quality control team to guarantee our quality according to AQL standard. KNT always care what you care!


Q: What is your warranty?

A: Our warranty is 12 months after delivery, KNT pays high attention to after-sales service.


KNT Scientech Co., Ltd, a wellknow and near 20 year experience manufacturer and supplier specialized in development, manufacture and sales for R.F. coaxial connectors, cable assemblies and microwave components and communications structure products in R.P. China, is located in Xi'an Electrical Industry Zone of Xi'an Hi-tech Development District.

Our main products are SMA Series, MCX Series, BNC Series and N type Series Coaxial Connectors, and design cable assemblies with different Flexible and Semirigid cables, LMR cables Times Microwaves systems cables Corrugated cables 50 ohm and 75 ohm cables. The inter connectors between SMA, N, MCX, BNC, TNC, SMP SSMB, SMC coaxial adapters and also have a popular sale. Welcome contact with us feel free for your special requirement. Call us or write us now !
