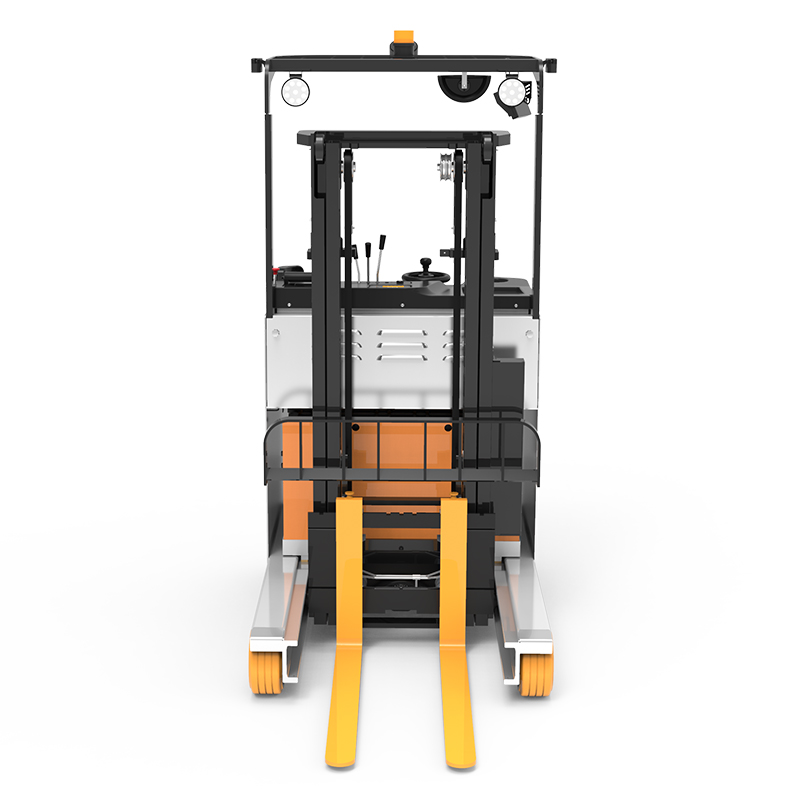

power stacker lift new vestil stacker
Basic Info
Model No.: FRA
Product Description
Condition: New
Tyres: Polyurethane
Overall Length: 2370mm
Length of Chasis: 1860mm
Overall Width :1090mm
Fork Length: 1070mm
Reach Length :600mm
Aisle Width for Pallets :2575mm
Turning Radius: 1700mm
Service Brake Electromagnetic
Type of Drive Control Mosfet Control
Trademark :zowell
Transport Package Wooden Pallet
Origin:Suzhou, China
HS Code:8427109000
1. Advanced AC control system eliminating motor brushes and directional contactors, which significantly reduces maintenance requirements. DC technology is optional.
2. Multi-function display: battery state, hour meter, fault code indicator, etc.
3. Stepless speed control.
4. Electric Hydraulic Steering for easy steering.
5. Reach function: Fork can extend 600mm
6. Fork can tilt forward / backward for safer load handling.
7. German Mannstaedt forklift profile for mast building.
8.Side battery roll-out system is very convenient for replacement. The battery front cover makes it easy to fill the battery.
9. 45-degree standing and operating position ensures comfortable operation.
10. Low stand-on platform for easily step on and off .
11.CAN-bus technology reduces wiring complexity and increase reliability.
12. Built-in pressure relief valve protects the trucks from overloads, increases the reliability.
13. Side shift is optional
Technical data - FRA15/18 | |||||
Identification | |||||
1.1 | manufacturer | ZOWELL | |||
1.2 | Model | FRA15 | FRA18 | ||
1.3 | Power Supply | Electric | Electric | ||
1.4 | Driving type | Standing on | Standing on | ||
1.5 | Load capacity | kg | Q | 1500 | 1800 |
1.6 | Load center | mm | C | 500 | 500 |
1.7 | Front overhang(Mast reach in/Mast reach out ) | mm | x | 385/175 | 565/175 |
1.8 | Wheel base | mm | y | 1345 | 1525 |
Weight | |||||
2.1 | Self weight(With battery) | kg | 2400 | 2400 | |
2.2 | Alex unload(Front/Rear)-fork back | kg | 1600/800 | 1600/800 | |
2.3 | Alex loaded(Front/Rear)-fork out | kg | 3390/510 | 3390/510 | |
2.4 | Alex loaded(Front/Rear)-fork back | kg | 2500/1400 | 2500/1400 | |
Wheel | |||||
3.1 | Tyres | Polyurethane | Polyurethane | ||
3.2 | Drive wheel size | mm | Φ330x145 | Φ330x145 | |
3.3 | Balance wheel size | mm | Φ178x73 | Φ178x73 | |
3.4 | Load wheel size | mm | Φ254x120 | Φ254x120 | |
3.5 | Wheels qty | 2/1X+2(X=driven) | 2/1X+2(X=driven) | ||
3.6 | Tread, front | mm | 977 | 977 | |
3.7 | Tread, rear | mm | 634 | 634 | |
Dimensions | |||||
4.1 | Tilting degree (Front/Rear) | deg | α/β | 3/5 | 3/5 |
4.2 | Overall height(mast lowerest height) | mm | h1 | 1995 | 1995 |
4.3 | Free lift height | mm | h2 | 105 | 105 |
4.4 | Lift height | mm | h3 | 3000 | 3000 |
4.5 | Mast extended height | mm | h4 | 3900 | 3900 |
4.6 | Overhead guard | mm | h6 | 2250 | 2250 |
4.7 | platform height | mm | h7 | 312 | 312 |
4.8 | Overall length(with fork) | mm | L1 | 2230 | 2410 |
4.9 | Distance to forkface | mm | L2 | 1160 | 1160 |
5 | Overall width | mm | b1/b2 | 1081/1093 | 1081/1093 |
4.11 | Fork size | mm | L/e/s | 35×100×1070 | 35×100×1070 |
4.12 | Fork carriage standard | ISO-2328 2B | ISO-2328 2B | ||
4.13 | Cargo fork width | mm | b3 | 720 | 720 |
4.14 | Fork width(Min/Max) | mm | b5 | 200/720 | 200/720 |
4.15 | Inside width of front leg | mm | b4 | 739 | 739 |
4.16 | Reach distance | mm | L4 | 560 | 740 |
4.17 | Minimum height above ground | mm | m1 | 75 | 75 |
4.18 | Minimum frame height above ground | mm | m2 | 75 | 75 |
4.19 | Aisle width:1000*1200 | mm | Ast | 2642 | 2699 |
4.2 | Aisle width:1200*800 | mm | Ast | 2512 | 2602 |
4.21 | Min turning radidus | mm | Wa | 1582.5 | 1758 |
4.22 | Overall length | mm | L7 | 1675 | 1855 |
Performance | |||||
5.1 | Drive speed(Loaded/unloaded) | km/h | 9.5/10.5 | 9.5/10.5 | |
5.2 | Lift speed(Loaded/unloaded) | mm/s | 330/350 | 330/350 | |
5.3 | Lower speed(Loaded/unloaded) | mm/s | 360/420 | 360/420 | |
5.4 | Move Speed | mm/s | 60 | 60 | |
5.5 | Grade ability (Loaded/unloaded) KB3'1.5km/h | % | 10/14.3 | 10/14.3 | |
5.6 | Parking type | machanical disc | machanical disc | ||
Electric Motor | |||||
6.1 | Driving motor KB60' | kw | 6.5 | 6.5 | |
6.2 | Lifting motor 15%ED | kw | 12.5 | 12.5 | |
6.3 | Turning motor | kw | 0.3 | 0.3 | |
6.4 | Battery voltage/capacity | V/Ah | 48/280 | 48/280 | |
6.5 | Battery weight | kg | 450 | 450 | |
6.6 | Battery size | mm | 956×375×570 | 956×375×570 | |
Others | |||||
7.1 | Controller type | MOS-FET inverter | MOS-FET inverter | ||
7.2 | working pressure | bar | 130-178 | 130-178 | |
7.3 | Oil capacity | l/min | 16 | 16 | |
7.4 | Noise | dB | 69-75 | 69-75 |
Contact us if you need more details on Powered Pallet Stacker. We are ready to answer your questions on packaging, logistics, certification or any other aspects about New Vestil Stacker、Manual Stacker Forklift. If these products fail to match your need, please contact us and we would like to provide relevant information.
